RECYFIX PLUS X drainage channel | car park & industry
IDEAL FOR: applications with higher traffic up to class 400, such as car parks, industrial estates and sewage plants.
YOUR BENEFITS WITH RECYFIX PLUS X
FRAME SYSTEM
- integrated galvanised or stainless steel frames
- protection against longitudinal and lateral movements of gratings
= Rendimiento asegurado
PRE-ASSEMBLED READY FOR INSTALLATION
- channel and grating = one part
- no spare parts
- easy handling on stock and construction site
- cost-efficient transport
= Minimización de costes
HIGH RESISTANCE
- high resistance against frost, de-icing salt and UV rays
- withstands high temperature differences
- for climate ranges from - 50 °C to + 80 °C and more
= Rendimiento asegurado
LOW WEIGHT ENSURES EASY HANDLING ON SITE
- much lighter than channels made of polymer / resin concrete
- easy transport and installation
= Ahorro de costes
HIGH-GRADE MATERIAL
- RECYFIX®-stable and almost unbreakable
- elastic and especially robust material
- withstands high loads and temperature differences in daily use
- 100 % recycled composite body (and also 100 % recyclable) ---> 100 % environmentally friendly
- 0 % water absorption
- smooth inner surface for superior flow characteristics
- PP channel body can be cut, drilled and worked easily on site
= Rendimiento asegurado
HIGH STABILITY
- proven structural design for superior resistance to dynamic forces and D 400 kN loads
- various ductile iron gratings in loading classes D 400 according to DIN EN 1433
- stable and durable drainage channel with protective edge
= Rendimiento asegurado | Calidad asegurada

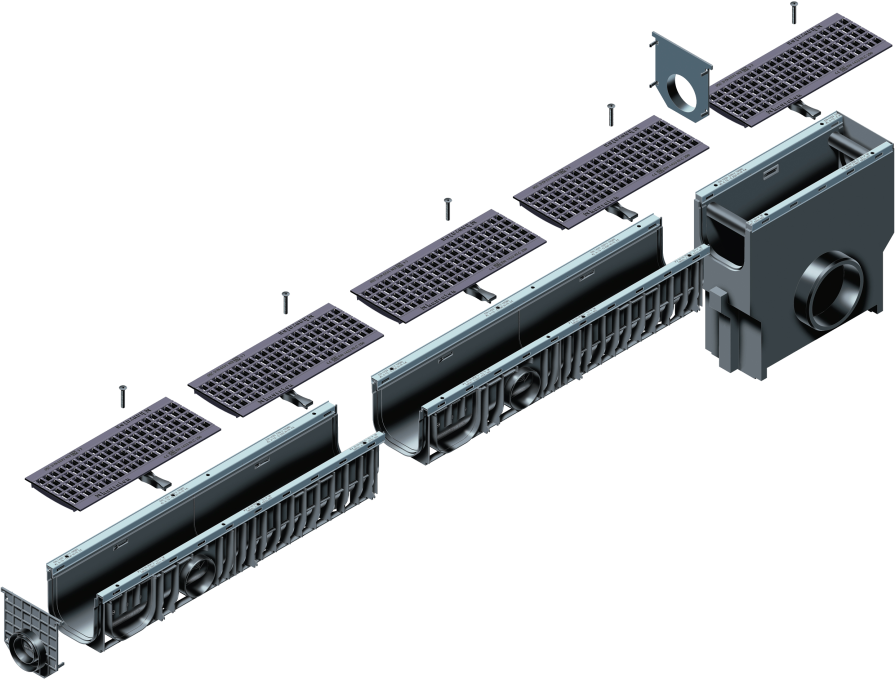

EL SISTEMA EN DETALLE
Canales de PP reciclado con bastidor de acero integrado, conforme con DIN V 19580 / EN 1433, conforme con CE, con conexión de machihembrado para una instalación precisa
Varias opciones de cubiertas, como rejas de malla de fundición dúctil GUGI
Sumidero con conexión para canales
Pared frontal con salida
Pared frontal sin salida
